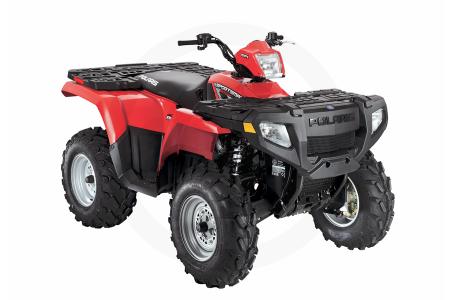

2009 Polaris Industries Sportsman® 800 EFI
Request a Quote Financing Calculator Request a Brochure Financing Form
Request a Quote Financing Calculator Request a Brochure Financing Form
  • OEM Overview
  • Specifications
  • Compare Models
  • Current Promotions

Overview

 Print Brochure

Best Selling Automatic 4x4 ATVs. Take the tough Sportsman®, drop in a massive 800-Twin engine, and you've got a powerhouse that delivers the power and torque to get you up, over and through anything.

  • On-Demand AWD: The Polaris exclusive AWD automatically engages all wheels when you need more forward traction and reverts back to 2WD when you do not.
  • All New Active Descent Control (ADC): Work together with Sportsman's Engine Braking System (EBS) to give you optimum control when moving down hills and steep inclines.
  • Independent Rear Suspension (IRS): The heart of what makes a Sportsman a Sportsman. The rock-solid, proven design minimizes body roll and keeps the ride smooth.
  • 3-Star PXT Tires: Exclusive 3.4 in. lug tire-cleaning pattern maximizes traction in mud and loose terrain.
  • Electronic Fuel Injection (EFI) 800 TWIN ENGINE: Automatically adjusts to altitude and air temperature for faster starts, crisper throttle responses and better fuel economy.
  • Dual Exhaust: Gives the 800 Twin more torque output, more power, and the deep grown that every beast needs to intimidate its prey. Now with 9% more power and 12% more torque.
  • Front Storage: The largest front storage of any ATV. Large capacity lets you carry loads of gear and still have access to it even with items tied down to the deck.
  • Available Painted Finish: Metallic automotive-style finish is 900% tougher and 9 times more scratch-reisistant than standard plastic is and, if damaged, can be easily repaired.
Engine
  • Engine Type: 4-Stroke
  • Displacement: 760 cc Twin
  • Carburetation: 40mm Throttle Body, EFI
  • Cooling Type: Liquid
  • Starting Type: Electric
Drivetrain
  • Final Drive: Shaft
  • Transmission: P/R/N/L/H
  • Drive System: Automatic PVT, Turf/2WD/AWD/AWD with ADC
  • Engine Braking System: Standard
  • Active Descent Control: Standard
Suspension
  • Front Suspension: MacPherson Strut with 8.2 in. / 20.8 cm travel
  • Fully Independent, progressive rate with anti-roll bar; 9.5 in. / 24.1 cm travel
Brakes
  • Front Brake: Single Lever hydraulic disc
  • Rear Brake: Hydraulic rear foot brake
Tires/Wheels
  • Front Tires: 26 x 8R12; PXT
  • Rear Tires: 26 x 11R12; PXT
  • Wheels: Stamped Steel
Dimensions
  • Wheelbase: 50.75 in. / 128.9 cm
  • Dry Weight: 770 lbs. / 349 kg
  • Length: 83 in. / 210.8 cm
  • Width: 48 in. / 121.9 cm
  • Height: 48 in. / 121.9 cm
  • Seat Height: 34 in. / 86.4 cm
Capacities
  • Fuel Capacity: 4.1 gal. / 15.5 l
  • Front Rack/Box Capacity: 100 lbs. / 45.4 kg
  • Rear Rack Capacity: 200 lbs. / 90.7 kg
  • Hitch/Type: Std / Receiver
  • Hitch Towing Capacity: 1500 lbs. / 680.4 kg
Instrumentation
  • Digital Gauge
  • Speedometer
  • Odometer
  • Tachometer
  • Tripmeter
  • Hourmeter
  • Clock
  • Gear Indicator
  • Fuel Gauge
  • Hi Temp/Low Batt lights
  • DC Outlet
Colors
  • Sage Green, Indy Red

Specifications

Engine
Engine Type 4-Stroke
Displacement 760 cc
Cylinders Twin
Engine Cooling Liquid
Fuel System 40 mm Throttle Body, EFI
Starting System Electric
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever hydraulic disc
Front Tires 26 x 8R12; PXT
Rear Suspension Fully Independent, progressive rate with anti-roll bar
Rear Travel 9.5 in. (24.1 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 26 x 11R12; PXT
Dimensions/Capacities
Dry Weight 770 lbs. (349 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.7 kg)
Towing Capacity 1500 lbs. (680.4 kg)
Fuel Capacity 4.1 gal. (15.5 l)
Ground Clearance 11.25 in. (28.6 cm)
Machine Dimensions (LxWxH) 83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase 50.75 in. (128.9 cm)
Drive Train
Drive Train Automatic PVT, Turf/2WD/AWD/AWD with ADC
Final Drive Shaft
Transmission P/R/N/L/H
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Colors Sage Green, Indy Red

Compare Models

 Print








Year 2009
Manufacturer Polaris Industries
Model Sportsman® 800 EFI
Style Sport
MSRP* $7,999.00
Chassis
Front Suspension MacPherson Strut
Front Travel 8.2 in. (20.8 cm)
Front Brake Type Single Lever hydraulic disc
Front Tires 26 x 8R12; PXT
Rear Suspension Fully Independent, progressive rate with anti-roll bar
Rear Travel 9.5 in. (24.1 cm)
Rear Brake Type Hydraulic rear foot brake
Rear Tires 26 x 11R12; PXT
Frame
Dimensions/Capacities
Dry Weight 770 lbs. (349 kg)
Front Rack Capacity 100 lbs. (45.4 kg)
Rear Rack Capacity 200 lbs. (90.7 kg)
Towing Capacity 1500 lbs. (680.4 kg)
Fuel Capacity 4.1 gal. (15.5 l)
Ground Clearance 11.25 in. (28.6 cm)
Machine Dimensions (LxWxH) 83 x 48 x 48 in. (210.8 x 121.9 x 121.9 cm)
Wheelbase 50.75 in. (128.9 cm)
Drive Train
Drive Train Automatic PVT, Turf/2WD/AWD/AWD with ADC
Final Drive Shaft
Transmission P/R/N/L/H
Engine
Engine Type 4-Stroke
Displacement 760 cc
Bore x Stroke
Cylinders Twin
Engine Cooling Liquid
Fuel System 40 mm Throttle Body, EFI
Starting System Electric
Alternator
General
Speedometer Standard
Tachometer Standard
Odometer Standard
Lighting
Colors Sage Green, Indy Red
